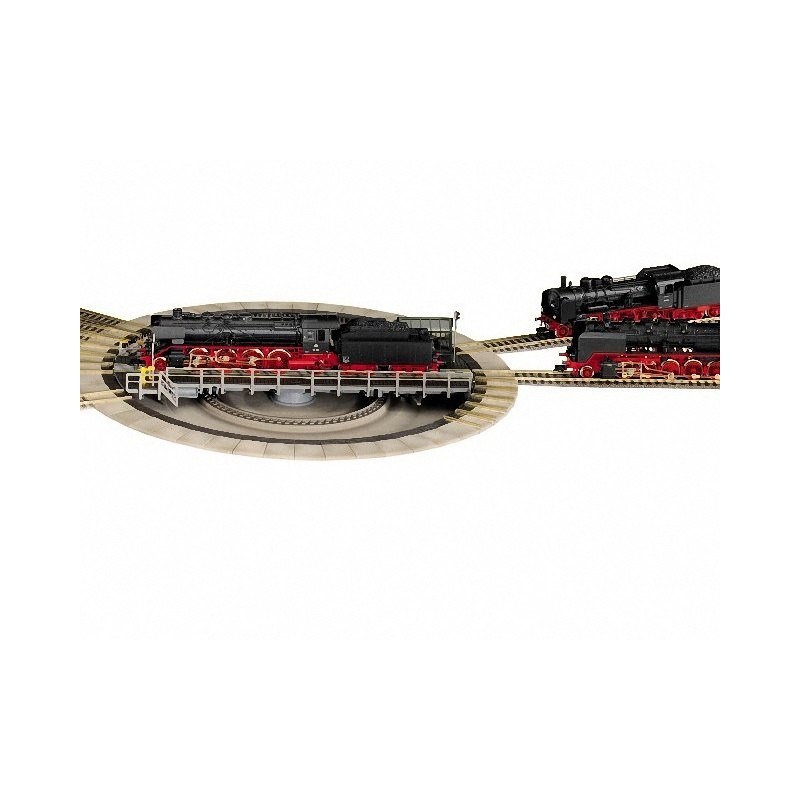

Electric turntable. Bridge 310 mm. FLEISCHMANN 6152
Electrically operated turntable, with electrically switchable track exits using the turntable control switch 6910. Length of the turning bridge: 310 mm.
6152
Data sheet
- Scale
- 1:87 (H0)
New
Electrically operated turntable, with electrically switchable track exits using the turntable control switch 6910. Length of the turning bridge: 310 mm.
The turntable is prototypically mounted in a recess and fitted with accurate details. As delivered, there are 6 exit tracks and 4 over-run ends. The exit tracks can be unclipped and repositioned as desired, or extended using the turntable extension set 6153 right up to the complete 48 exits. The switch 6910 will determine the rotation direction in order to access the desired exit. The power feed is activated within the turning bridge. The power to the track exit with which the turntable is lined up, either left or right, can be fed with power using the switch 6910. All other track exits remain isolated (even those opposite each other). A maximum of 48 track exits can be controlled and electrically operated without the need for any additional wiring.
Consultas sobre este producto
| F 24/02/2024 |
Question:
Buenos días. Es necesario un transformador para accionar la rotonda ó viene incluido. De ser así, cual sería el apropiado. Gracias.
Answer:
Hola Fernando, Sí, para el funcionamiento de la placa se precisa un transformador que no se incluye en el contenido. Fleischmann aconseja uno de sus transformadores/reguladores con referencia 670601, 6725, 6735 y 6755. Un saludo. |
| F 21/02/2024 |
Question:
Buenas tardes; El control es analogico ó Digital. Gracias.
Answer:
Buenos días, El control de giro del puente se realiza a través del controlador que se incluye en la placa. La vía como tal puede tener la alimentación que se emplee en el resto del circuito. Un saludo. |
| M 24/12/2019 |
Question:
Hola solo para asegurarme, en el puente puedo poner una loco de 298 mm?, cabe?
Answer:
Buenos días, Sí, es correcto. Hasta 310mm de longitud entraría. Un saludo. |
