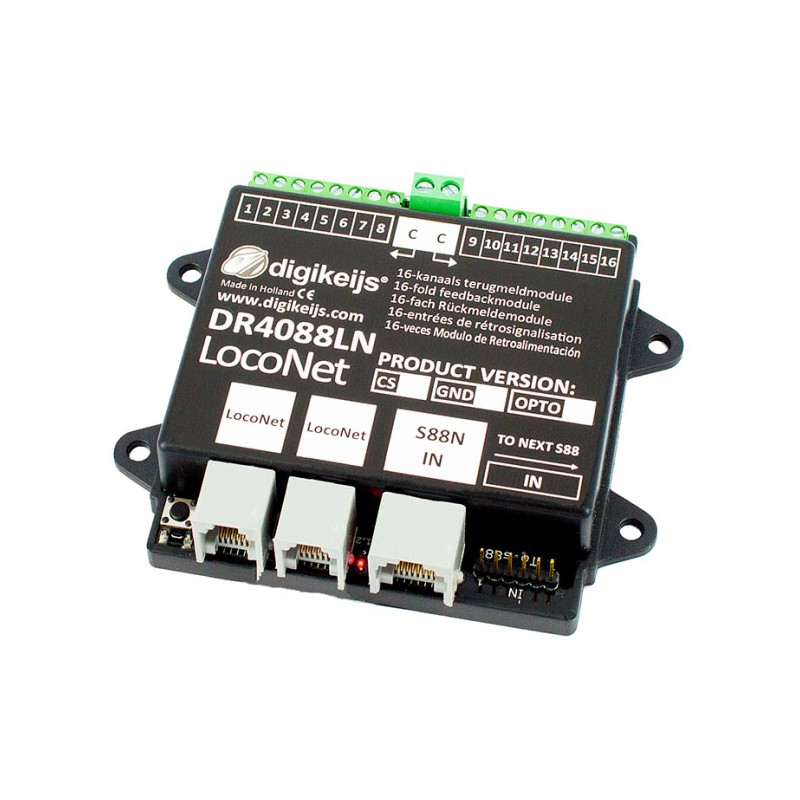

S88N feedback module w/ LocoNet. DIGIKEIJS DR4088LN-CS
This feedback module with 16 integrated occupancy indicators is designed for monitoring 16 sections of track and is rated up to 3 Amps. The module comprises two sections of 8 indication points, where each section has its own separate common. The
DR4088LN-CS
New
This feedback module with 16 integrated occupancy indicators is designed for monitoring 16 sections of track and is rated up to 3 Amps. The module comprises two sections of 8 indication points, where each section has its own separate common. The network connections allow the modules to be placed up to 10 meters from each other. The LocoNet connections make it particularly easy to connect the module to eg. your Loconet(r) system. For 2-rail systems.
- 16 channels Power detection
- LocoNet connection
- Activity indicator LED
- Rated up to 3 Amps (peak)
- Standard S88 and STP connections (S88-N)
- Small solid housing by applying SMD techniques
Consultas sobre este producto
| J 14/02/2022 |
Question:
Hola Podrian indicar como funcionaria con central ecos? Hay retromodulos ecos??
Answer:
Hola Juan Antonio, Este retromódulo como tal no puedes conectarlo directamemte a una ECoS, dado que no tiene entrada para red Loconet. Si quisireas crear una red Loconet en la ECoS necesitarías el Loconet Converter. Por otro lado, puedes prescindir del sistema Loconet y crear la red de retromódulos con BUS S88 directamente (Digikeijs tiene un adaptador S88 válido para la ECoS). También tienes la opción de emplear los retromódulos propios de ESU, que emplean el sistema ECoSlink nativo de la central. Estos lo podemos pedir sin problema si te interesan. Un cordial saludo. |
